Automatic production line for defect free detection of empty bottles of eye drops

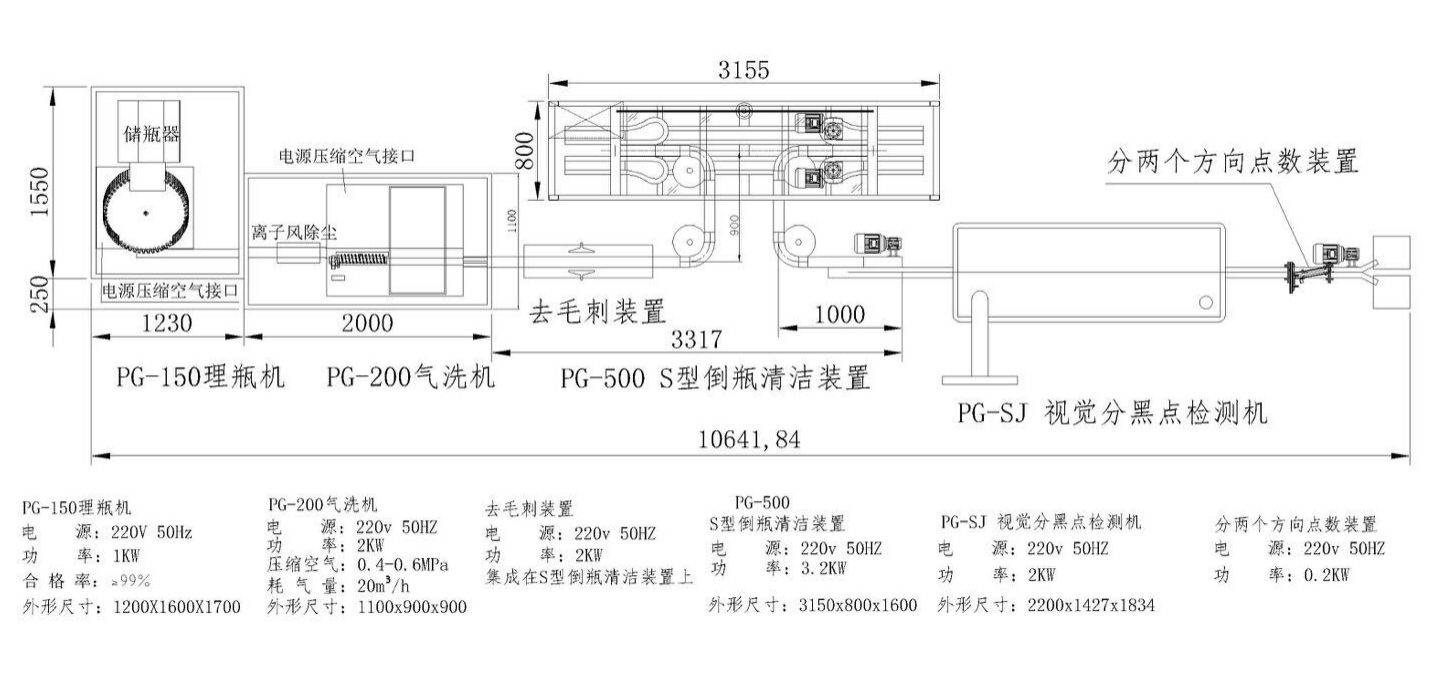

Configuration list

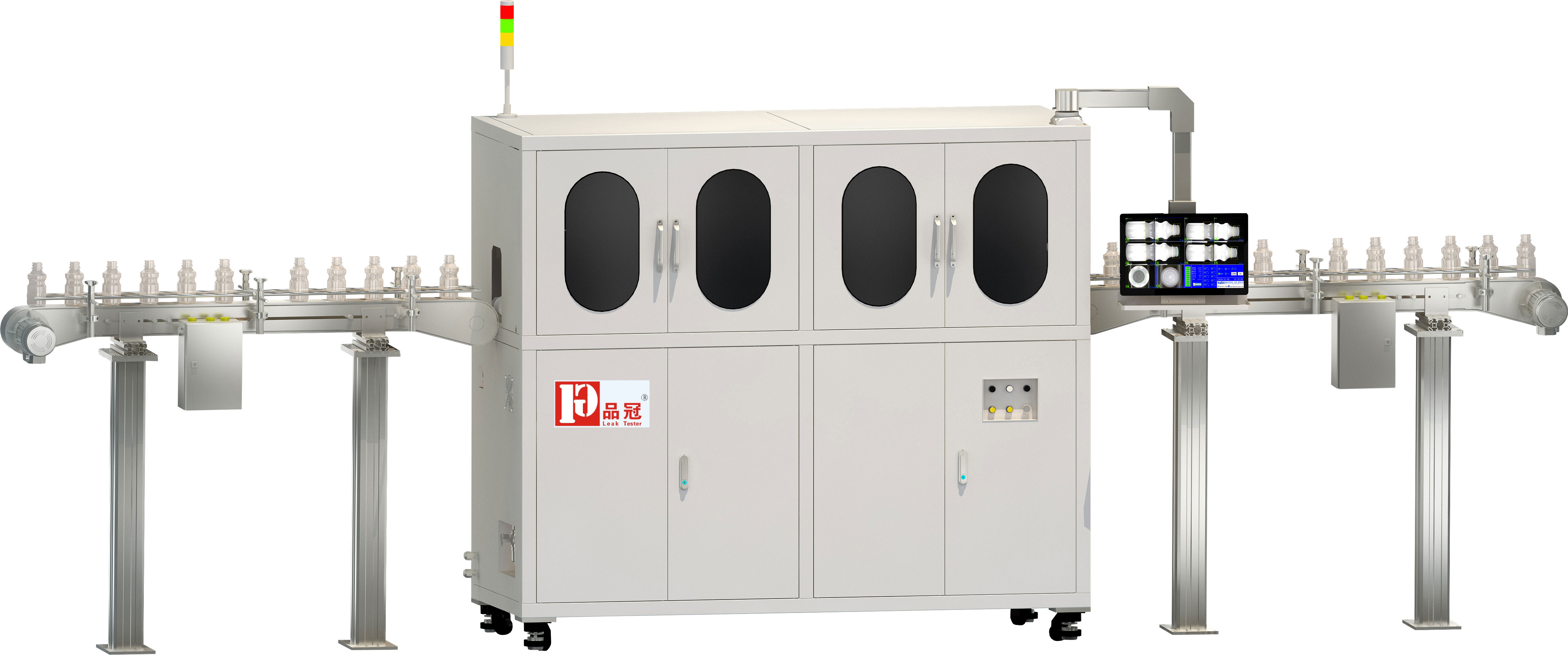

Crown bottle inspection machine

After testing, the bottle can use 6 sets of vision system and mature testing institutions to detect bottle mouth defects, bottle mouth deformation, black spots on the bottle body and black spots on the bottom of the bottle stably. The vacuum conveyor belt can ensure that the position of the product is not offset during movement. The test speed can reach 5 per second, without pouring the bottle. The speed of the feeding part is guaranteed by the customer. The stainless steel plate is used at the joint of the feeding chain plate and the detection machine, and the discharge port is the same.

1. Device detection function

1, bottle mouth roundness, bottle end face black spot, bottle mouth defect detection

2. Black spots and dark impurities on the bottle. (External surface)

3. Black spots on the bottom of the bottle, dark impurities (external surface)

2. Device running parameters

1, 1.3 million pixel camera, resolution 1280*960 pixels

2, detection speed of 300 / min.

3, detection accuracy 0.2mm (black point), 0.3mm can detect dark points. Can be adjusted according to the use

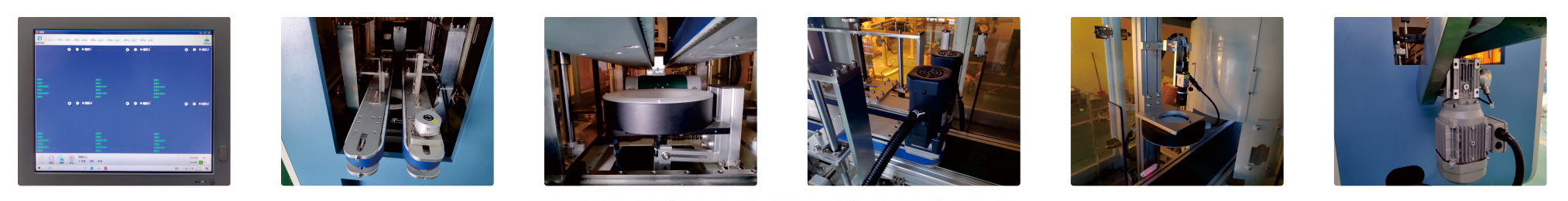

3.Configure the main components of the device

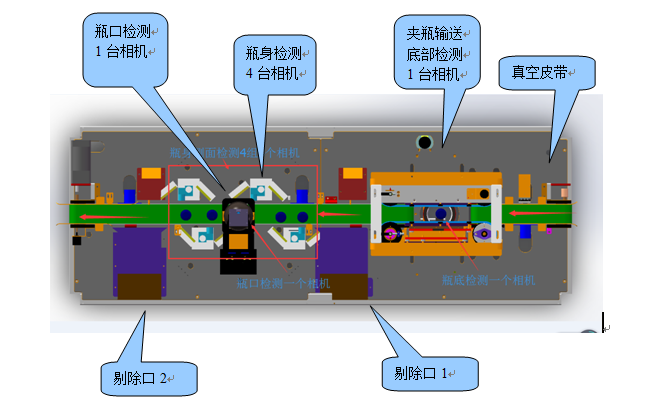

检测工位描述

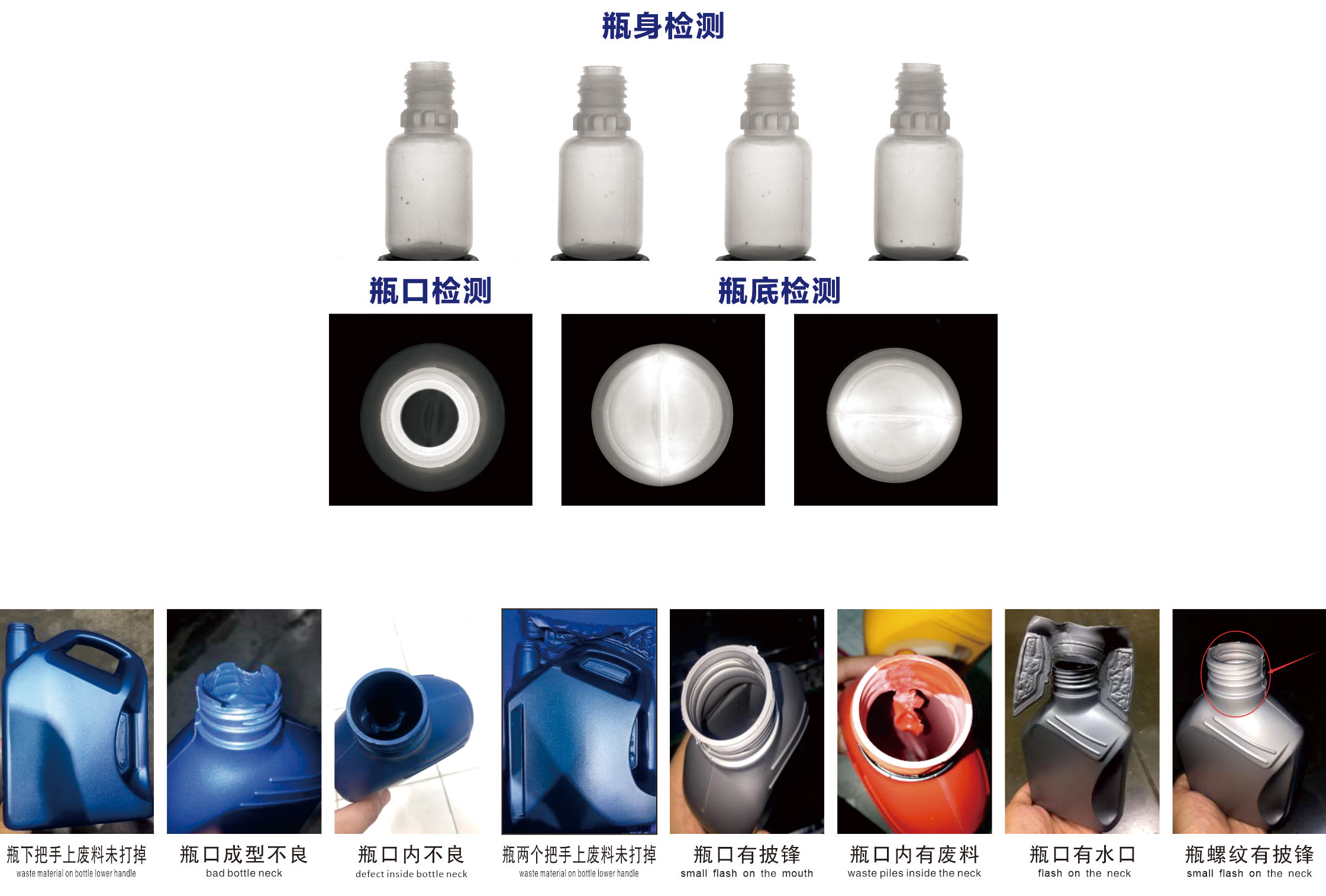

不良品展示
